ELEVATORS

COASTAL OUTDOOR ELEVATOR

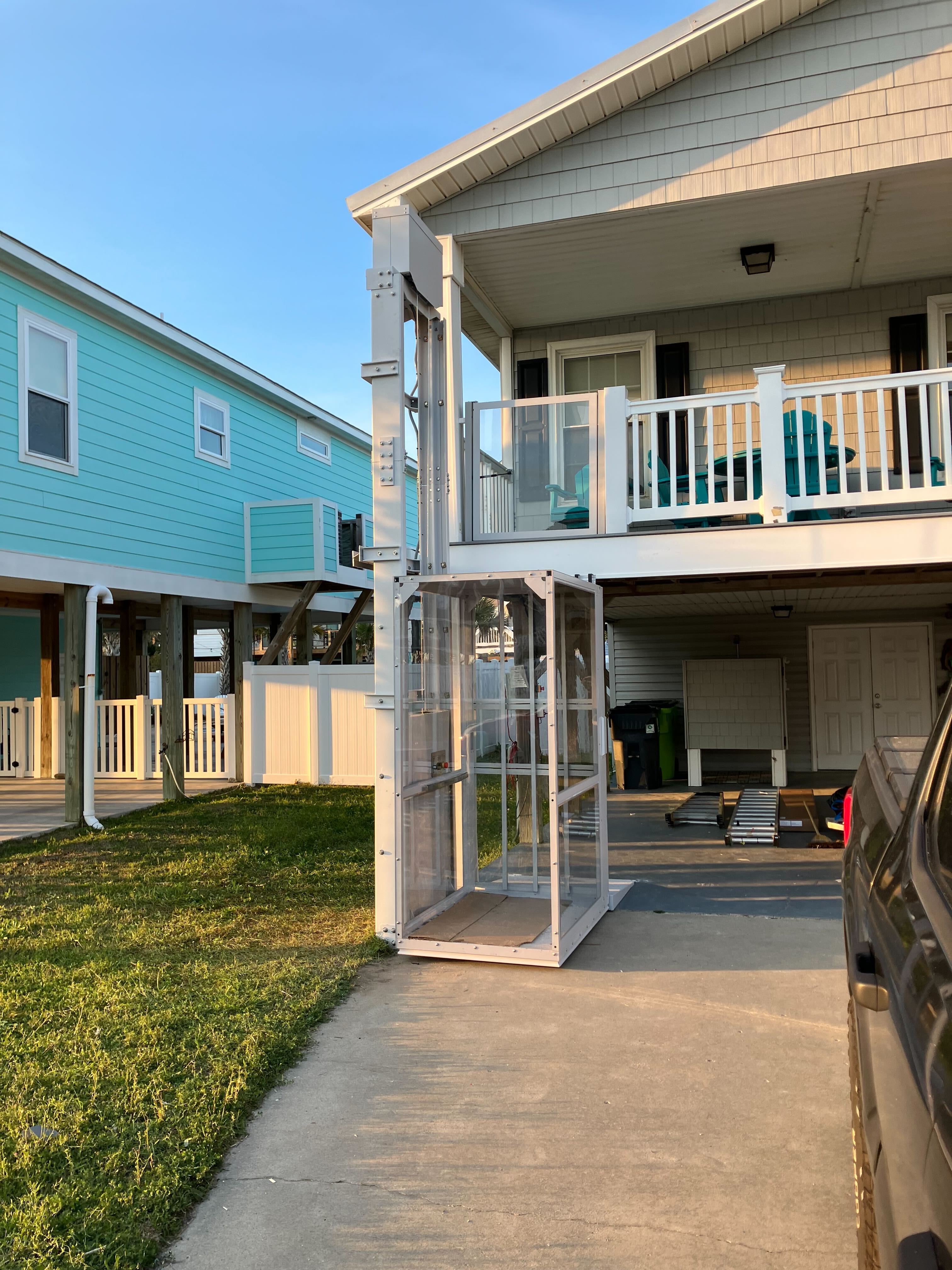

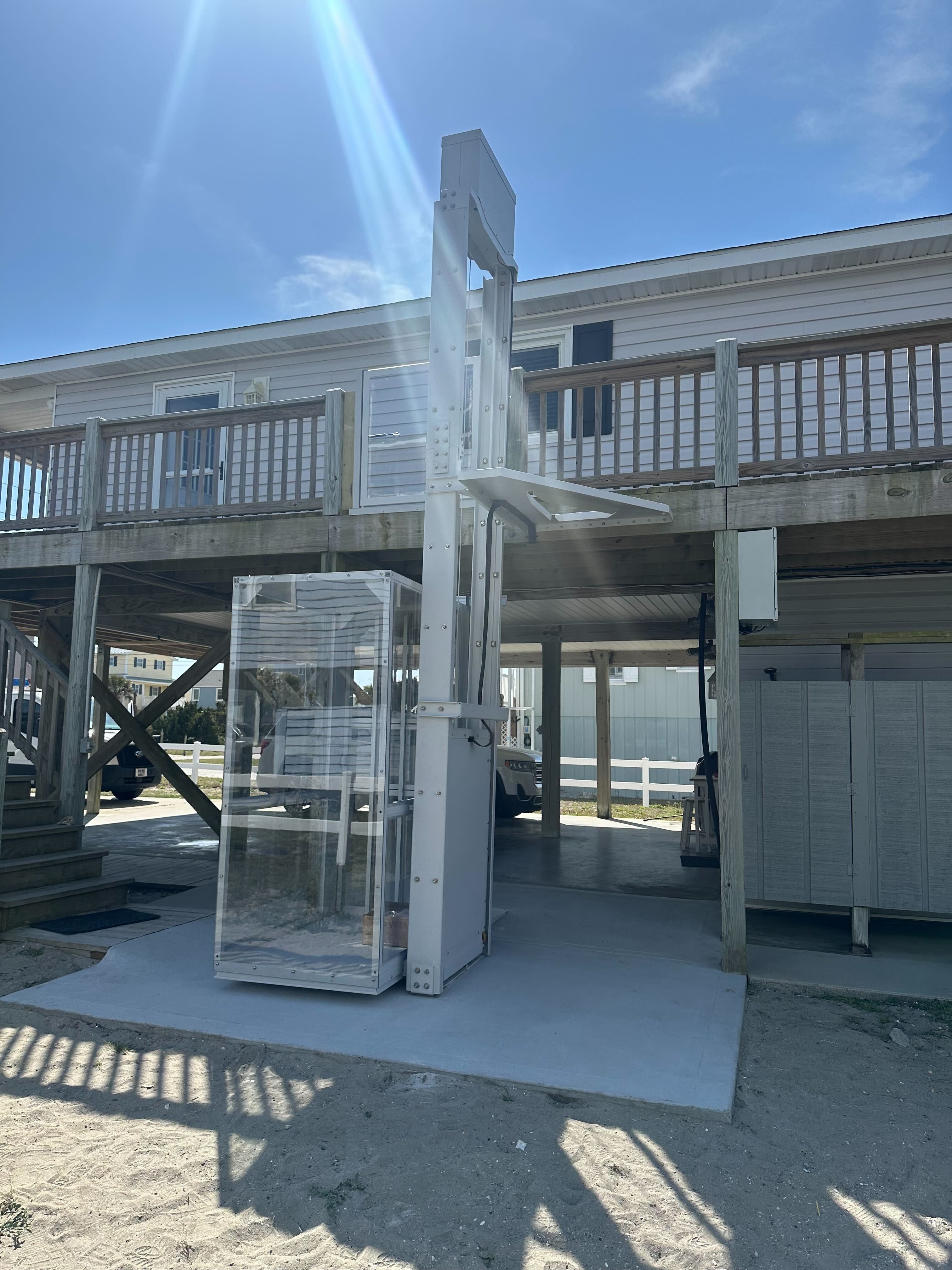

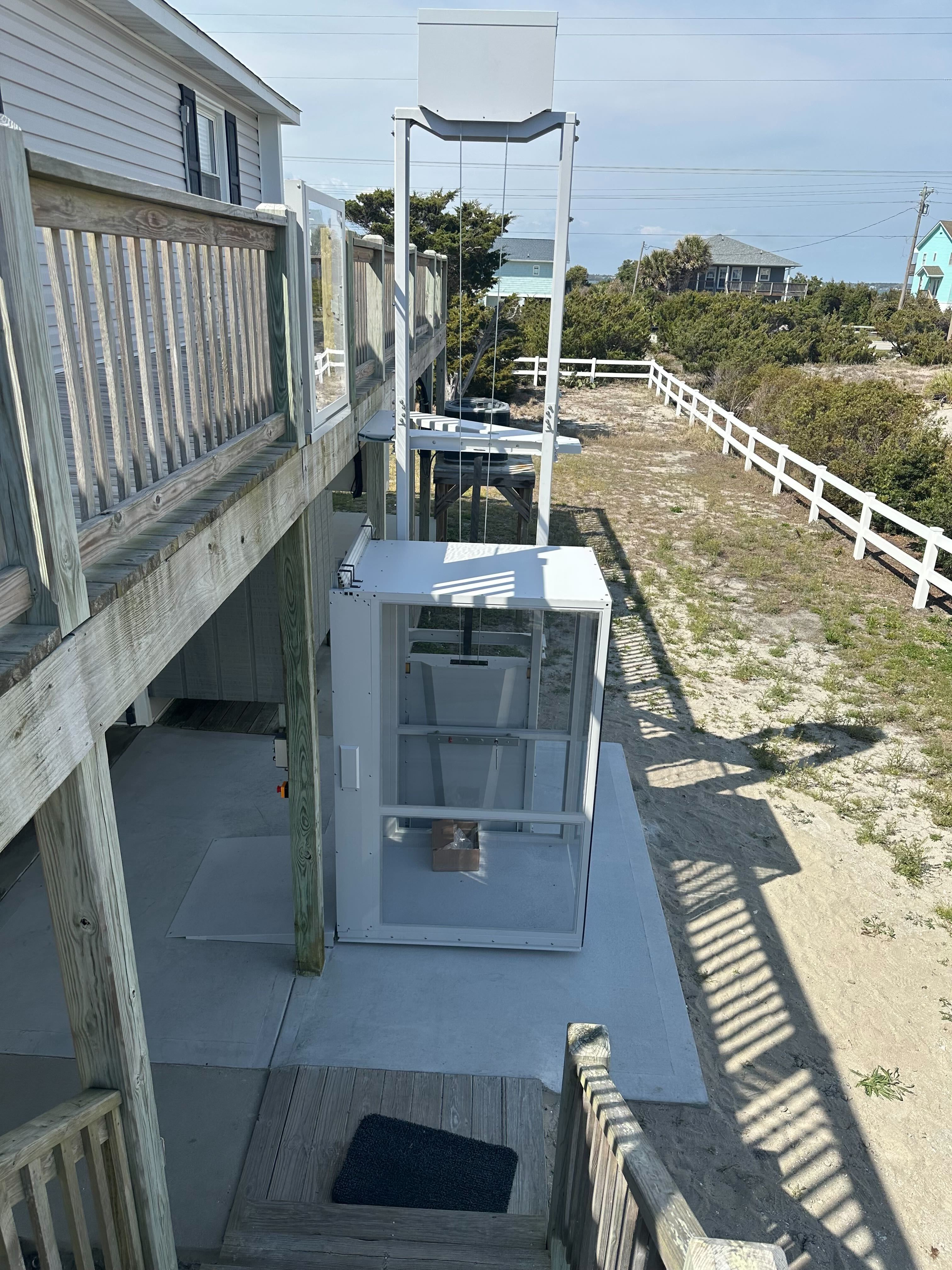

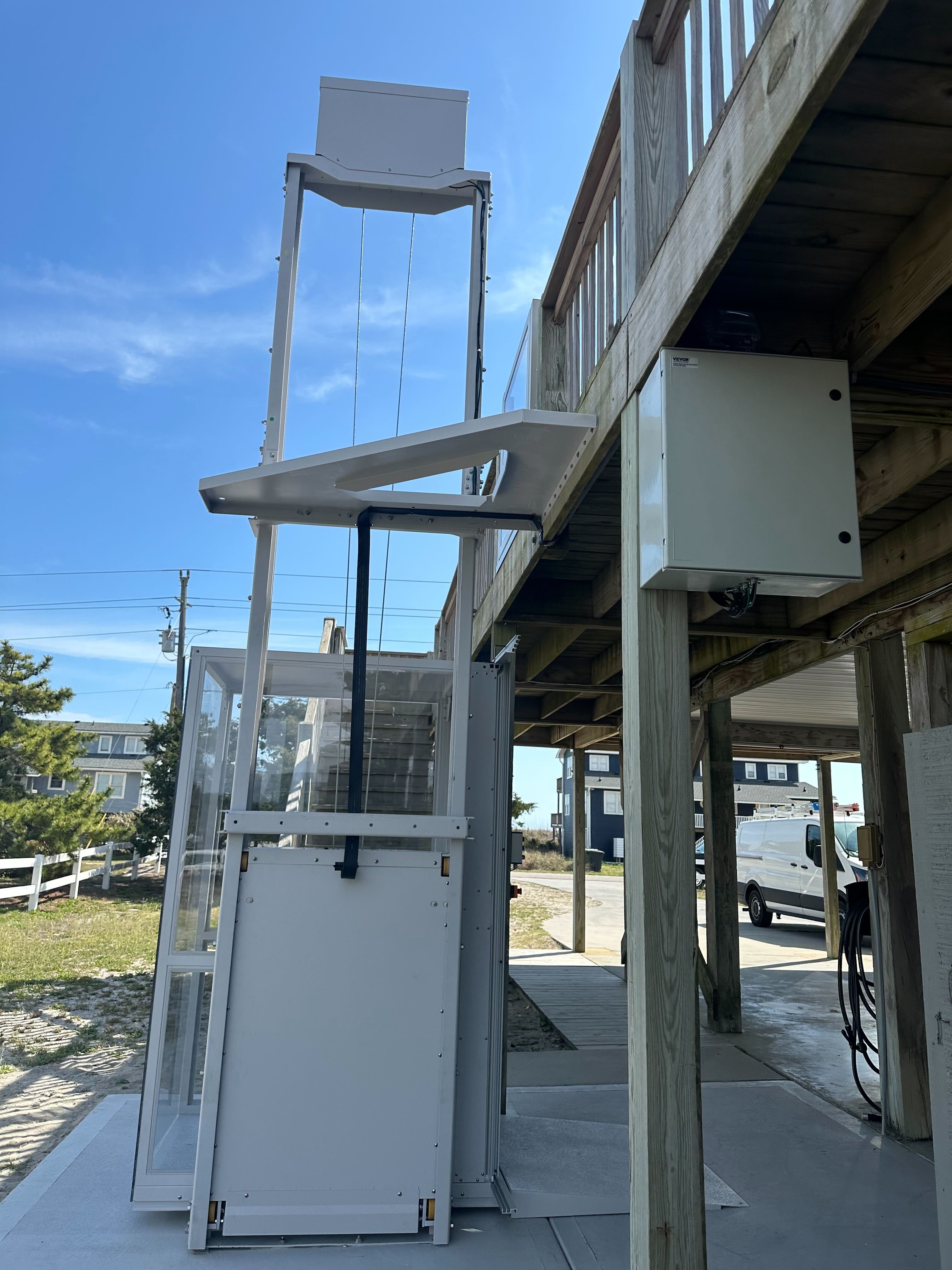

The Coastal Outdoor Elevator is an extremely stylish and affordable solution to your residential lifting needs. Pre-wired and adjusted for a perfect fit, this outdoor elevator is designed for easy installation and operation.
This fully equipped modern outdoor elevator is designed with an incredibly strong, yet see-through polycarbonate cab and gate, aluminum framed cab and galvanized steel rails to prevent it from rusting while being outdoors.

Winding Drum

800lbs

24 fpm

2 Stops

REQUEST MORE INFORMATION
1-888-773-6708
DOWNLOAD BROCHURE
DOWNLOAD INSTALLATION GUIDE
DOWNLOAD JOBSITE CHECKLIST

Downloads

Home elevators

COASTAL OUTDOOR ELEVATOR

The Coastal Outdoor Elevator is an extremely stylish and affordable solution to your residential lifting needs. Pre-wired and adjusted for a perfect fit, this outdoor elevator is designed for easy installation and operation.

The Coastal Outdoor Elevator is able to hold up to 800lbs. This fully equipped modern outdoor elevator is designed with an incredibly strong, yet see-through polycarbonate cab and gate, aluminum framed cab and galvanized steel rails to prevent it from rusting while being outdoors.

Equipped with multiple safety features like gate switches, interlocks, and an underpan, the Coastal Outdoor Elevator will not operate unless it is fully safe to do so with no obstructions in the way.

Winding Drum

800 lbs

24 fpm

Up to 2 stops

Highlights

No shaft or enclosure needed

With our qualified technicians, your elevator can be installed quickly and safely without the need for construction of a shaft or enclosure.

Strong and elegantly designed

The Coastal Outdoor Elevator can hold up to 800 lbs.

Reliable access to your outdoor spaces

Built with weather and rust resistant materials, the Coastal Outdoor Elevator is perfect for decks and outdoor locations.

Technical specifications

Drive System

Winding Drum

Travel Speed

24 fpm

Safety Switches

Interlocks, Underpan, Gate Switches

Applications

Residential Outdoor Elevator

Maximum Capacity

800 lbs (362 kg)

Warranty

2 years

Power Supply

120V AC 15a Single Phase

Cab Dimensions

36 x 54 inches (standard)

Travel Distance

168 inches

Max Landings

2

Codes & Regulations

CSA B613, ASME 18.1

Cab Height

84 inches

The highest safety standards

In addition to a meeting high safety standards, the VISTA also features an automated underpan dectetion system,. This prevents the car from advancing in the event of an obstaslce in the travel. ou can also presse the emergency button located on the Control Operating Panel inside of the car to stop the VISTA during an emergency.

Frequently Asked Questions

How much does an Atlas VISTA Platform Lift cost?

Prices of a platform lift vary and depend on a number of different things. Our platforms come in standard sizes and in custom-made. The price is determined by many different aspects and options which our trained staff and sellers will asses before providing you with an accurate quote.

How long does it take to install an Atlas VISTA Platform Lift?

It takes less than a day to install your Vista Platform Lift! Enclosed VISTA Platform Lift can take longer to install, but any disruption is kept to an absolute minimum. After installation is complete, your Certified Atlas Installer will make sure the platform lift is tested thoroughly, and demonstrate all the features and operation.

I have a disability. Is the Atlas VISTA Platform Lift suitable for me?

All Atlas products have been designed with you in mind and to ease difficulty with many disabilities; why not contact us today to talk through your needs and the options available to you.

Quality Assurance

When  you  choose Atlas products you choose quality.  Atlas  products  are  built  by  elevator  people  with  elevator  know-how. A  commitment  to  excellence  and  hands on  project  management  from  start  to  finish  is  our  pledge  to  you.  Make Atlas products  a  successful  part  of  your  next  project!
